Solar-Powered Timber House
When planning their home, the owners aimed to achieve the greatest possible degree of independence. Consequently, they opted for an energy concept featuring a large photovoltaic system, battery storage, infrared heating, and a domestic hot water heat pump.

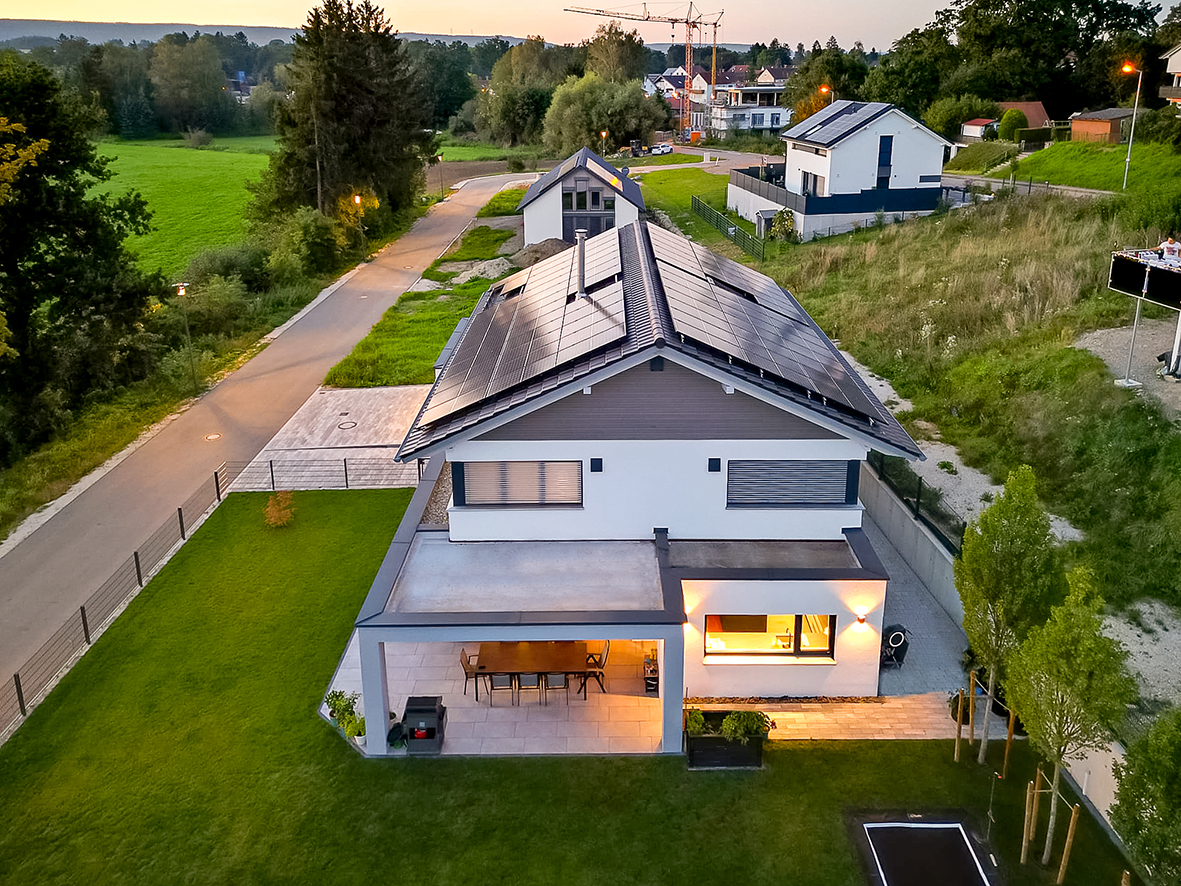

The roof is oriented in east-west direction. This allows the PV system to generate significant solar power in the mornings and evenings—energy that can be effectively utilized within the household, including for the electric heating system.
The family of four achieves 80 percent self-sufficiency for hot water and around 40 percent for heating. The infrared heaters provide cozy radiant heat throughout the house.
Single family house (Riedlingen, Germany) – a project from HALLER INFRAROT
Photos: Haller Infrarot GmbH
Haller Infrarot is a member of
IG Infrarot Deutschland e.V.

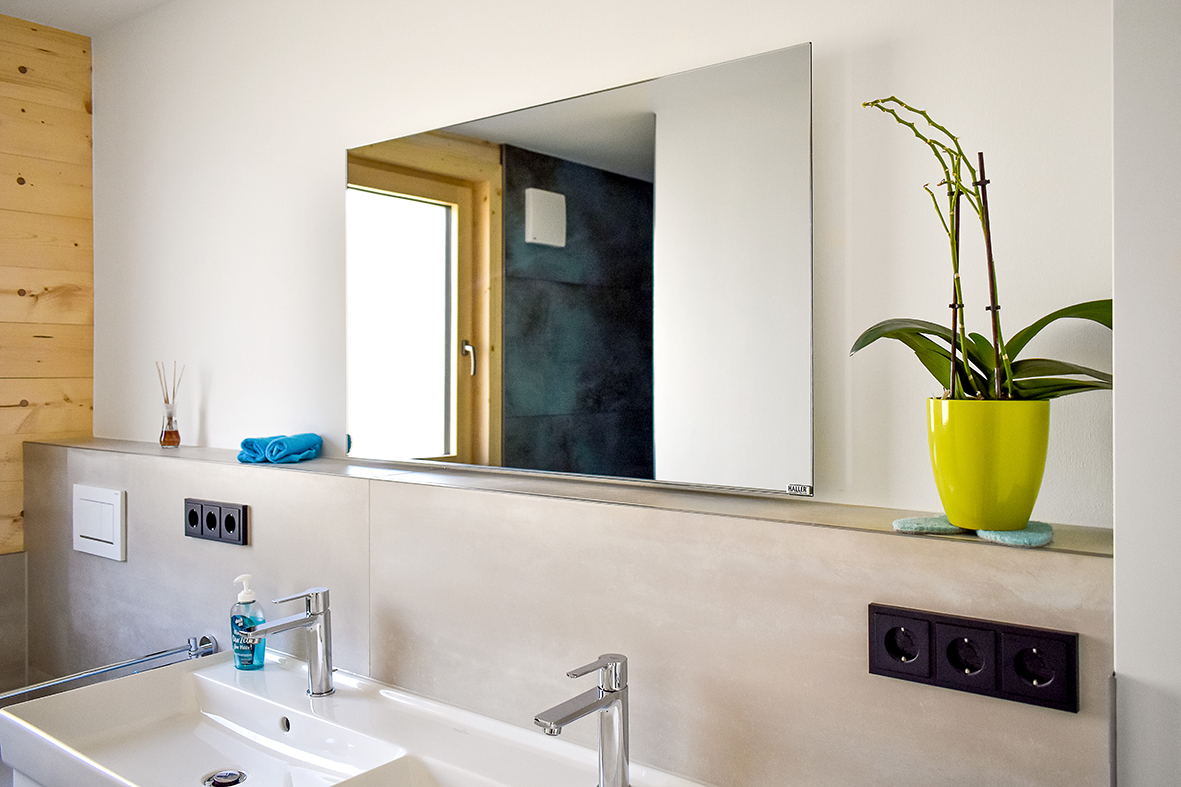

Haller picture infrared heater in the living room (upper left), wall-mounted heater in the kitchen (upper right) and mirror infrared heater in the bathroom (below).
FACTS AND FIGURES
| Name of the project | Single family home |
| Typology | Single family house |
| Location | Riedlingen (Germany) |
| Completion | 2021 |
| Type | New build |
| Construction | Timber (17 cm solid timber wall, 18 cm wood fibre insulation) |
| Energy standard | KfW-Effizienzhaus 40+ |
| Heated floor area | 230 aquare meters |
| Heating load | 6,2 kW |
| Heating system | Infrared heating system (main heating system) + stove, 18 infrared panels (11 kW power rating), wall and ceiling mounting |
| Hot water supply | Hot water heat pump |
| Ventilation | decentralised with heat recovery |
| Photovoltaics | 27,75 kW + battery storage system 17,75 kWh + 2 wall boxes |
| Date | 08.24.2026 |
